  Show Posts
Pages: [1] 2 3 ... 27
1  Discussion Boards / Williams by Bachmann / Re: Squealing When Stopping on: February 09, 2016, 03:09:30 PM
Bob,

It is very hard to believe that all of your 100 locos have this issue. The locos that you mentioned in your other threads were over 20 years old. If they are older than that, and do not have a flywheel a sudden stop squeal is the wheels sliding on the track.  There is no cure for this.  You have to throttle down slowly on these models.

If your locos have been stored for 20 years or more, you are going to need to clean off the old lubrication and re-lubricate them. Then run them for so time so that the lube gets distributed. This should solve the majority of your problems.

When lubrication and run-in time does not solve the problem, look at these two other possibilities.

1.  Flywheel rubbing against top of shell.  When this happens, it is usually where the body shell curves down on the side. You can thin the flywheel by removing the shell and running the loco on rollers or on blocks to let the wheel spin freely.  While running on the blocks, take a flat metal file to remove some material from the top of the flywheel.  The flywheel needs to be spinning so that it will still be balanced after filing. Make sure to use safely glasses or goggles and a dust mask.  Use compressed air to blow off any metal filings.

2.  Motor worm gear rubbing the inside of the motor mount.  This will go away with time because the worm gear is steel and the motor mount is softer Zamak. However, if it is getting on your nerves, you can take off the truck and then take the motor mount off of the motor and file the inside hole of the motor mount with a round metal file.

Regards,

3rail



2  Discussion Boards / Williams by Bachmann / Re: Williams U33C on: January 30, 2016, 11:47:38 PM
Bob,

I know that the Brass Sharks had an older power transistor reverse boards (the early U boats had them too.) The transistors would sometimes overheat, so we started adding heatsinks to them and this solved the problem. If you do not have heatsinks, you may need to resolder the transistors and add heatsinks. We started using a new design in the mid 90's.

If you still have difficulties call our service department during business hours.

http://www.bachmanntrains.com/home-usa/service.php

Regards,

3rail
3  Discussion Boards / Williams by Bachmann / Re: Will the heavyweight coaches make a return? on: January 11, 2016, 03:53:28 PM
Dear Norman,

We rarely retire tooling unless it is worn out (the heavyweight cars are not worn out).  We don't have a scheduled return date for the heavyweight cars at this time.  When we do make them again, any new features or improvements will be announced.

Regards,

3rail
4  Discussion Boards / Williams by Bachmann / Re: Reverse board with AC motor on: January 11, 2016, 03:22:50 PM
Dear Woofer,

The reverse board is designed to work with all Williams locomotives. They have always used DC motors. We will revise our description in the catalog going forward to avoid any confusion.

We do not make a reverse board specifically designed for AC motors.

I found this information on the Internet, but I cannot confirm it will work without having a locomotive with an AC motor to test it, so use it at your own risk:

Quote
Here is a method to operate the AC motor with a DC board and rectifier.


Hot + DC wire from Reverse unit to one AC terminal of the bridge rectifier
The armature across the + and of a Full Bridge Rectifier
The other AC terminal of the bridge to one of the field coil ends
The common point of the field coil to DC ground on the PC board.

The True Blast Plus board will operate off of AC track voltage and can be triggered with a transformer that has a horn AND bell buttons.

Older transformers with just a whistle button may work, but will only activate one sound. (IF the rectifier is still in good working condition. Many disc rectifiers degrade with time and do not function properly.)   The horn will blow if the hot lead is connected to the center rail and the bell will ring if the hot lead is connected to the outside rail.

If you do not wish to install these items in your Lionel RDC car, you should return them to the retailer where you purchased them.

Regards,

3rail
5  Discussion Boards / Williams by Bachmann / Re: WILLIAMS SCALE GE-44 Tonner 23101 to 23104 on: November 20, 2015, 11:21:51 PM
Hello EastbrookBridge,

You can buy the shell and other parts for this loco on our parts department.

http://estore.bachmanntrains.com/index.php?main_page=index&cPath=66_77_673


Regards,

3rail
6  Discussion Boards / Williams by Bachmann / Re: OGAUGE PETER WITT TROLLEYS on: November 05, 2015, 06:42:56 PM
John,

There is no easy way to add a lockout to this board.  We will add one the next time we produce this item, and it will require some redesign to the board.  I cannot tell you when that will be scheduled.


In the meantime, here is a solution that may work for you.  It is not a Lock-out, but more of a bypass. The reverse board will still function, so the lighting features will sequence each time (front and rear headlight). This will supply the motor directly with DC power when the switch is thrown one way, and function normally through the circut board in the other position. The rest of the electronics are still live, so the interior lighting and the Trolley bell sound will still work.

When you disassemble the Streetcar, you will see that the interior poles carry the electricity to the control board mounted in the ceiling of the streetcar. There are wires under the seats that connect to the motor and track power contacts. The wiring diagram is below shows the wires.

For this modification, you will need a Bridge Rectifier and a Double Pole Double throw switch (DPDT).  The biggest problem is going to be locating the switch and bridge.  Some of the latest production of Peter Witts have a punch out in the frame for a switch underneath in the rear.  You will need to locate the bridge so it can dissipate some heat.






If you have any questions, let me know.


Regards,

3rail
7  Discussion Boards / Williams by Bachmann / Re: 2015 Williams Catalog on: March 26, 2015, 11:42:53 PM
Guys,

You can see that several of the models that were out of the catalog a few years ago are now back with different features.  (The Genesis, GP38, and FA-1.)  We give the models a year or so to clear out the pipeline from time to time.  We invest a significant amount of money in tooling in each model we make, so they won't sit on the shelf forever.

Regards,

3rail

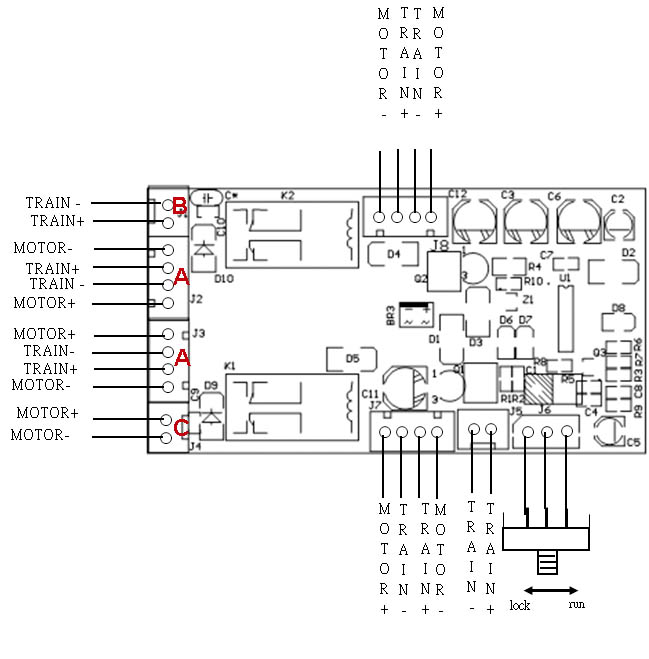

8  Discussion Boards / Williams by Bachmann / Re: New Reverse Board Mystery Socket Functions on: March 25, 2015, 10:21:44 AM
Dear All,

I wanted to verify the functions before I posted.  The extra sockets are just for ease of installation for certain diesels.  They simply supply AC and DC power to other boards in the loco.  They do not have any special functions except for the lockout switch socket.  For normal installations you just use sockets labeled A and B.  Sockets A would be used for each power truck. Socket B is used to power the sound system. If you are controlling a second unit's motors with a tether, you would use Socket C (DC output).   Train+ is AC Hot, Train- is AC Ground, Motor+ is DC+, Motor- is DC-.



Regards,
3rail
9  Discussion Boards / Williams by Bachmann / Re: Williams 44-Tonners are here! on: March 23, 2015, 04:19:55 PM

A couple of details on the new locomotive.

1. The motors with flywheels are mounted inside the trucks allowing ample space for 3rd party electronics inside the body.

2. The locomotive runs smoothly on O-27 curves and will not derail cars that normally don't derail on O-27 track. The coupler is mounted to the frame and pivots independently of the truck.

3. The sound for the locomotive has been recorded from an actual 44 ton locomotive with the original Caterpillar Prime movers. If you wish to adjust the volume see this post.

4. During testing the locomotive has demonstrated that it has enough power to pull 9 Williams box cars and two 60 ft Heavyweight cars on a straight and level track.

Regards,

3rail

10  Frequently Asked Questions (F.A.Q.s) - READ ONLY FORUM / Williams by Bachmann / How do I adjust the volume on a TrueBlast Plus board on: March 23, 2015, 04:10:00 PM
Here is the location of the volume adjustment on the board:

11  Discussion Boards / Williams by Bachmann / Re: FA-1 Status of new roadnames being released? on: January 31, 2015, 08:25:54 AM
These will be A-B units and will be in stock late 1st quarter/ early 2nd quarter.
12  Discussion Boards / Williams by Bachmann / Re: E Z Streets set on: November 20, 2014, 12:13:30 PM
Lee,

The E-Z Street? Expressway set, as well as the new sedans (Blue Sedan and Ringling Bros and Barnum and Bailey? Clown Car) are in transit to us now and should be shipping out to dealers mid-December.   The turnouts will be arriving 1st quarter of 2015.

Regards,

3rail
13  Discussion Boards / Williams by Bachmann / Re: True Blast Plus on: September 07, 2014, 10:16:14 PM
Would should have them sometime this Fall.
14  Discussion Boards / HO / Re: Any address other than 3 results in no head and rear lights on: August 20, 2014, 04:52:10 PM
Faraway,

Sorry about losing your post, but we had a problem during our upgrade and we had to restore back to yesterday's data.

Here is your exact post from this morning:

My very first Value Sound GP7 arrived an hour ago.
It runs great and I am changing some CVs (not so fast and not so loud). All that works fine but front and rear light stop functioning if I change the address (CV1) from 3 to 5.
I have never seen any dependency between address (CV1) and standard lights (CV33/34) on any other decoders.
Could you please enlighten me. I assume I missed some fundamentals with Tsunami Value Sound decoders I am not used to with other brands.
15  Discussion Boards / Williams by Bachmann / Re: LED's for my E7 on: August 17, 2014, 11:59:22 AM
Great job on the LED upgrades.

One thing that you need to know.  On certain transformers the reverse board may not sequence correctly after you remove the light bulb.  This is caused by some leak voltage given off by the transformer that does not allow the reverse board to advance to the next state. You can eliminate the problem by using a lighted lockon, running a lighted caboose, lighted passenger car, or connecting a lightbulb to the track power (like a streetlight, house light).

Regards,

3rail
Pages: [1] 2 3 ... 27
